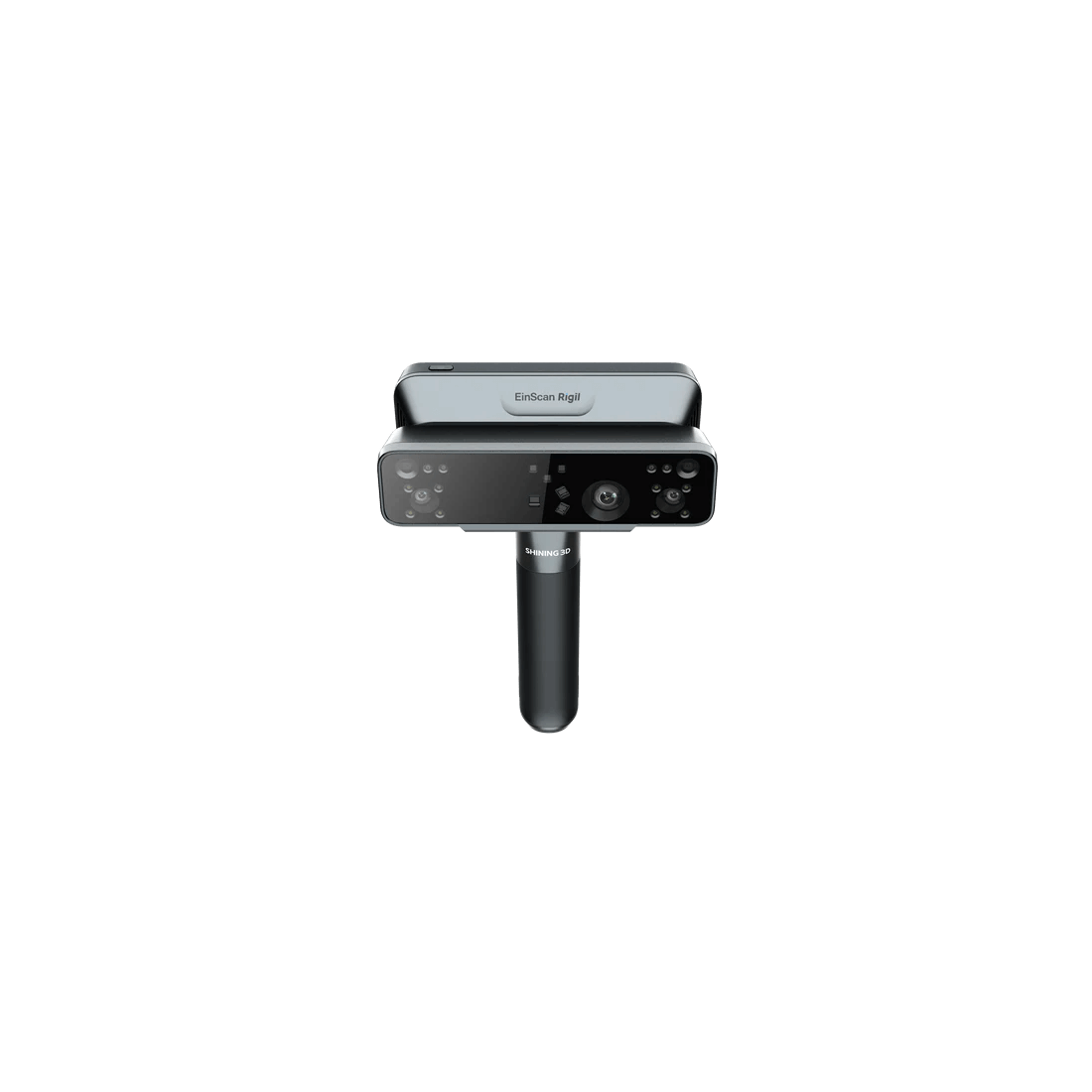

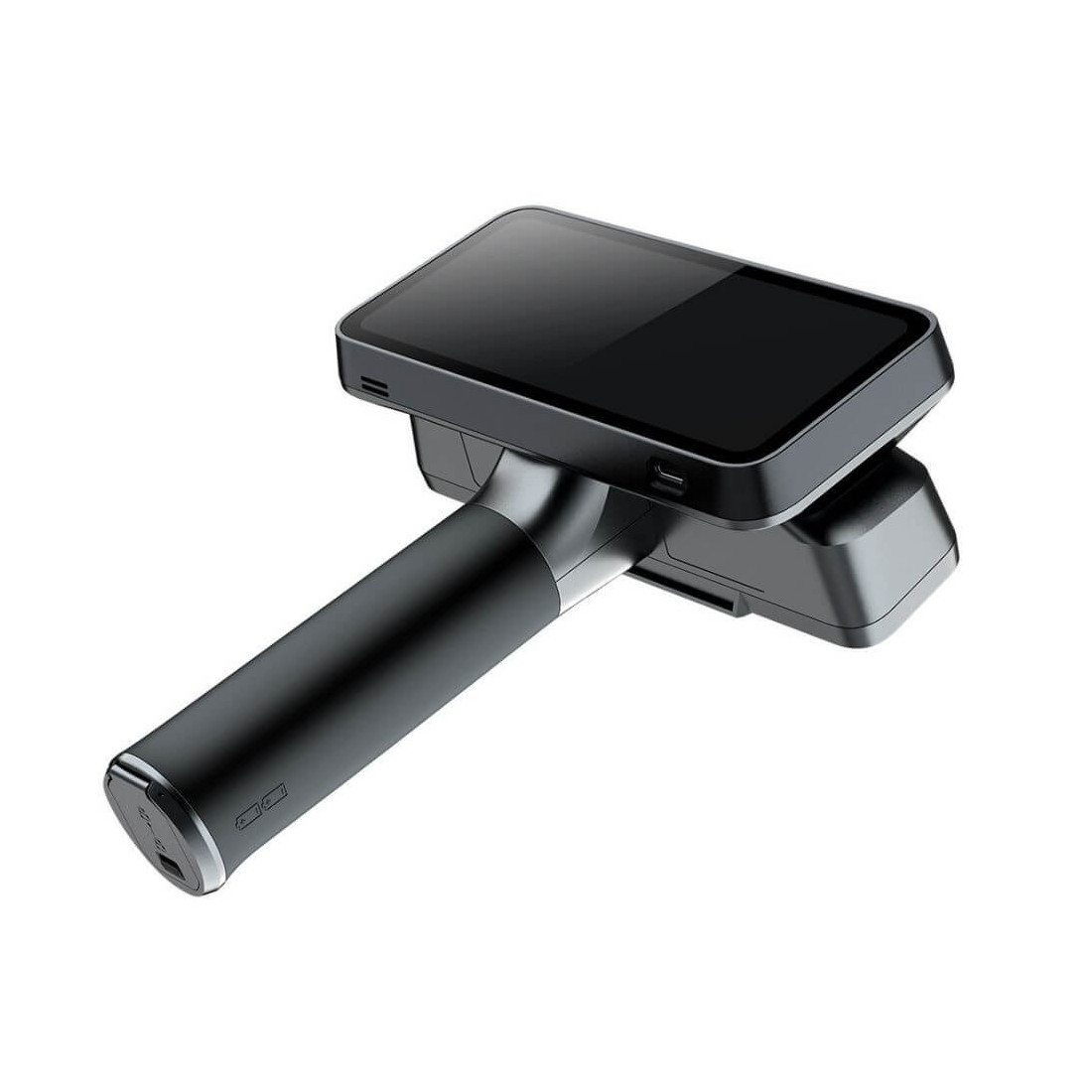

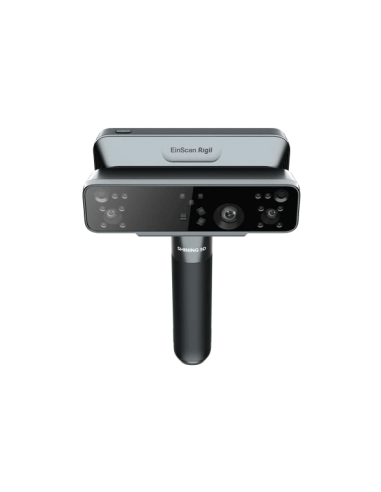

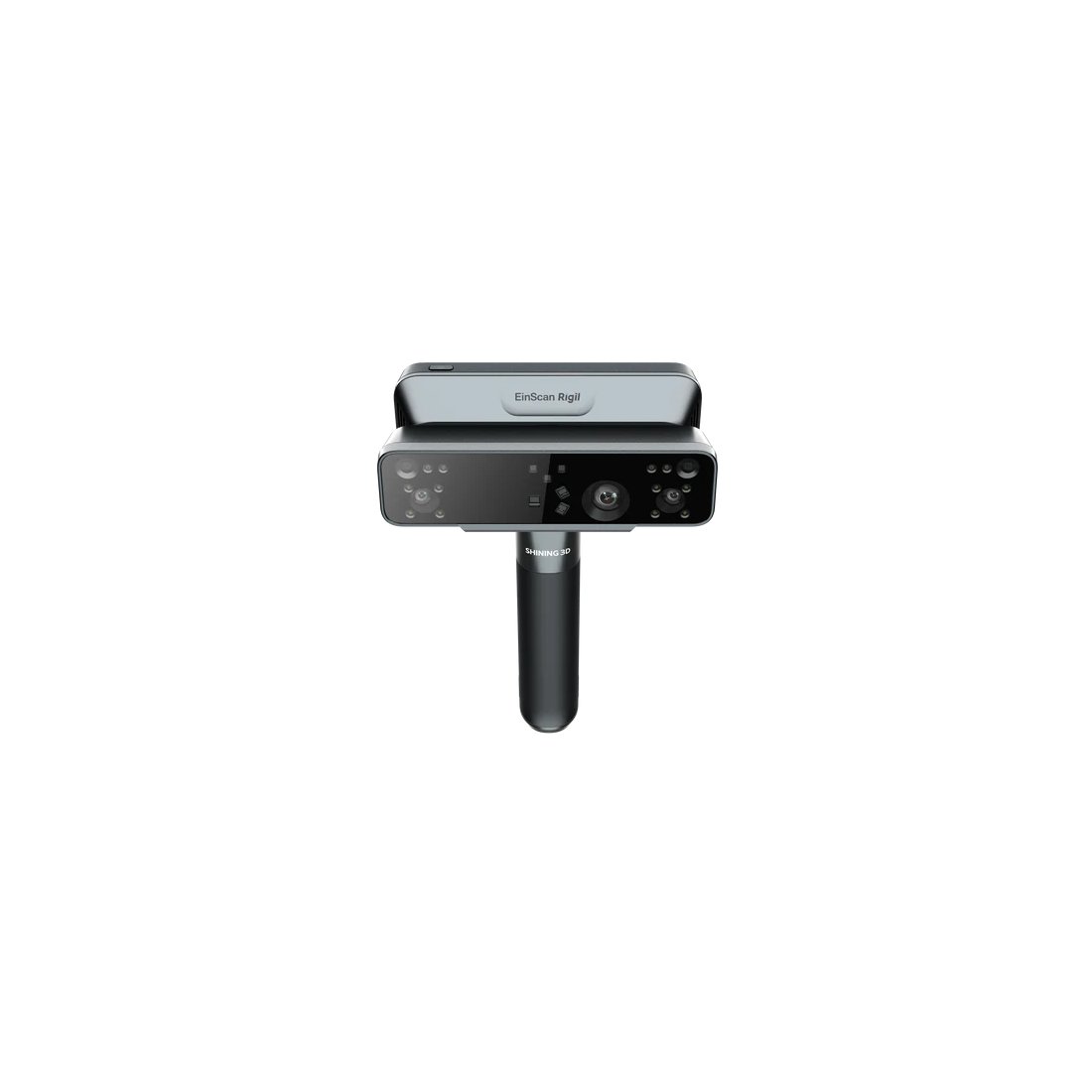

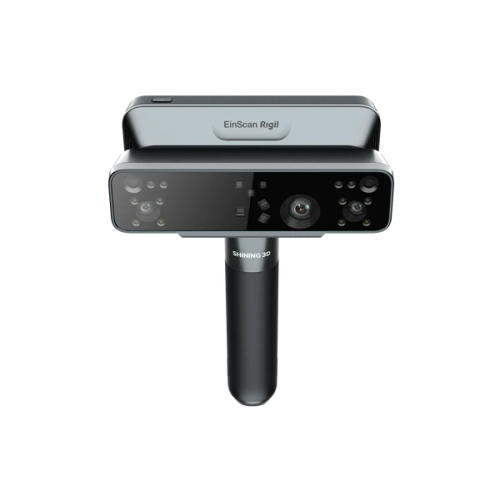

The world’s first tri-mode hybrid light technology-equipped wireless 3D scanner, EinScan Rigil, delivers speed, precision, and flexibility in manufacturing processes with its hybrid light source and built-in computing power.
Flexible options with wired-wireless PC, fully standalone, and high FPS wireless modes tailored to your needs.

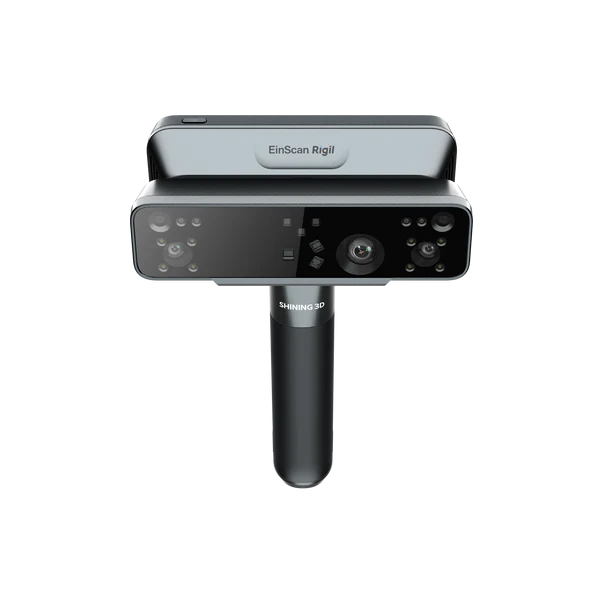

Combines 19+19 cross blue lasers, 7 parallel blue lasers, and IR VCSEL in a single body, adapting to any surface.
0.04 + 0.06 mm/m volumetric accuracy, 0.05 mm geometric resolution.
.jpg)
Offers optimized performance for every project with standalone mode, wireless PC mode, and wired PC mode.
.jpg)

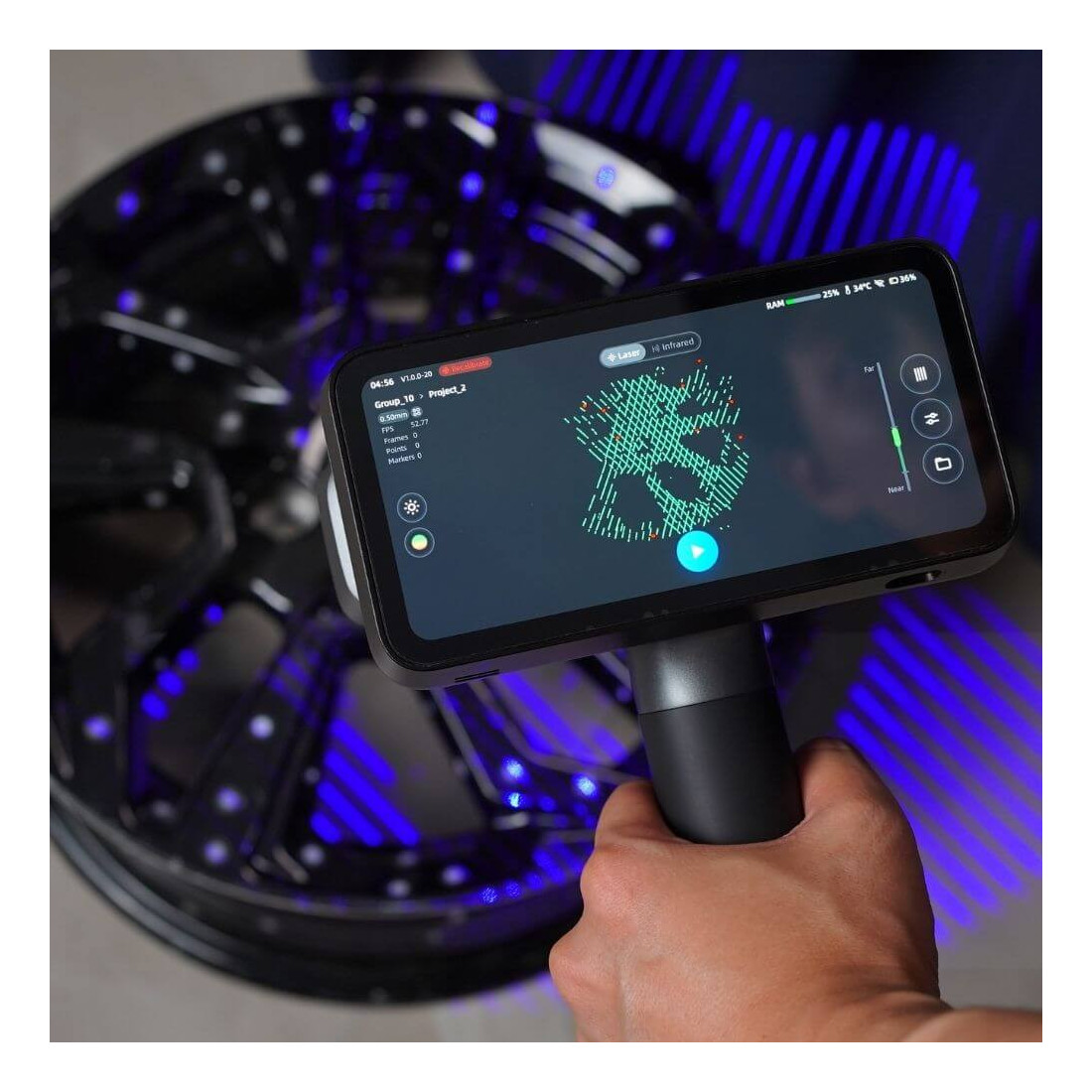

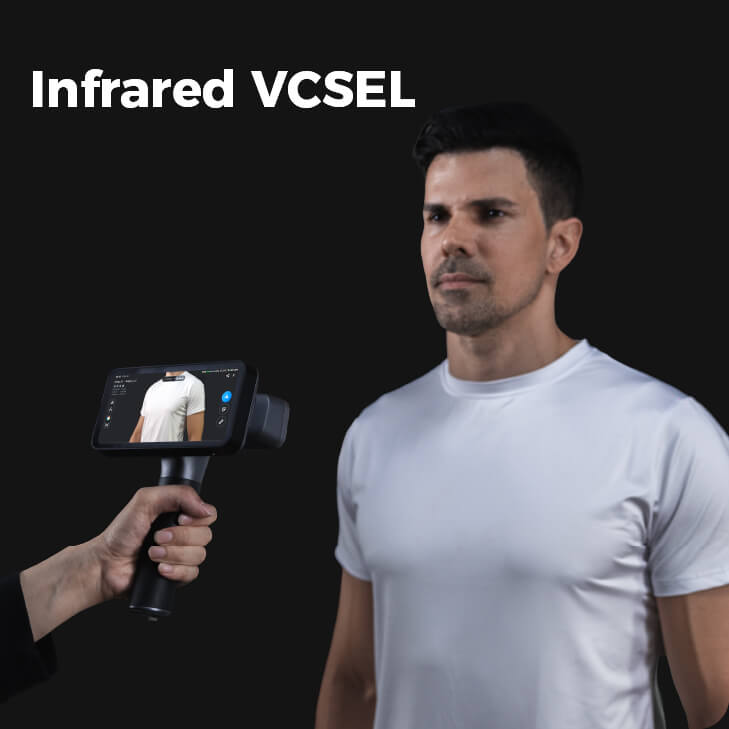

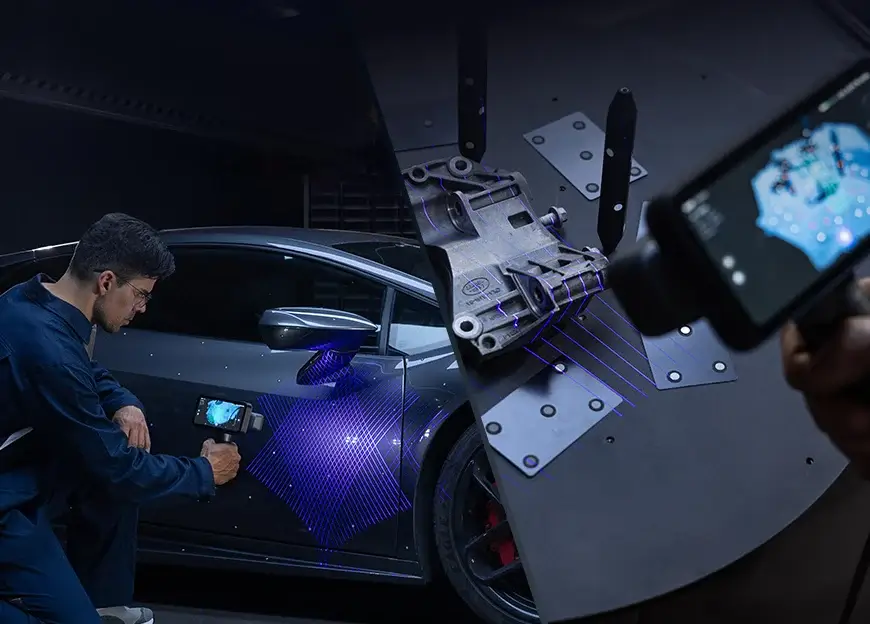

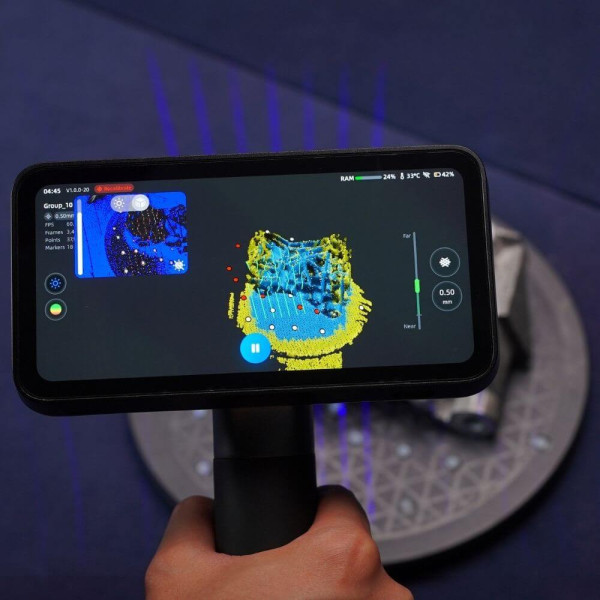

Blue laser and infrared VCSEL technology enable scanning for all surface types.
.jpg)

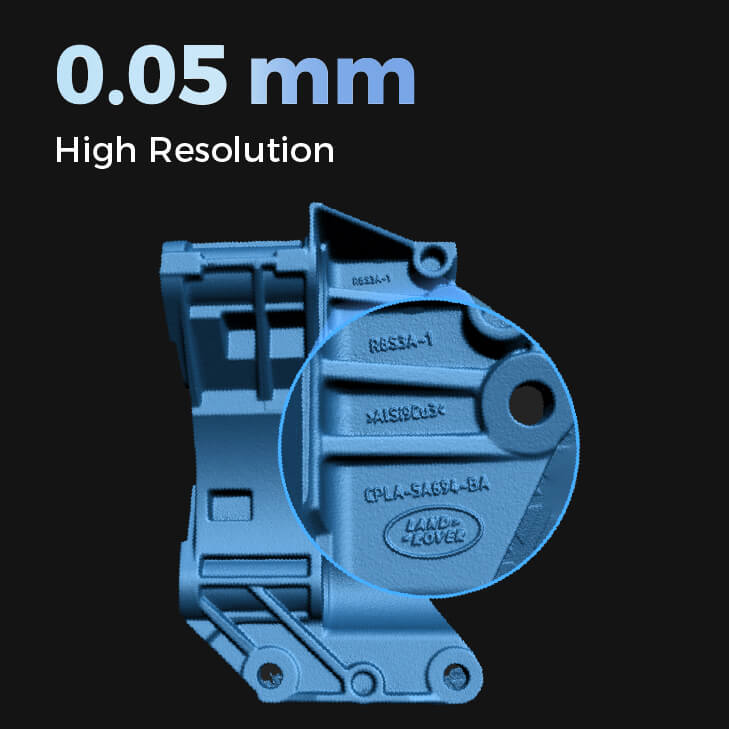

0.04 + 0.06 mm/m Accuracy Delivers professional-grade volumetric accuracy and detailed geometric resolution up to 0.05 mm.
.jpg)

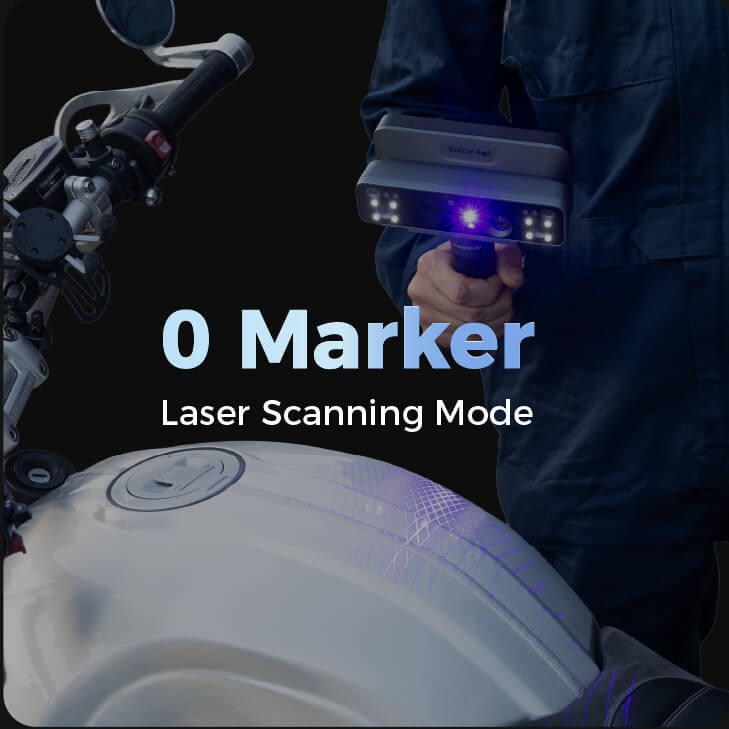

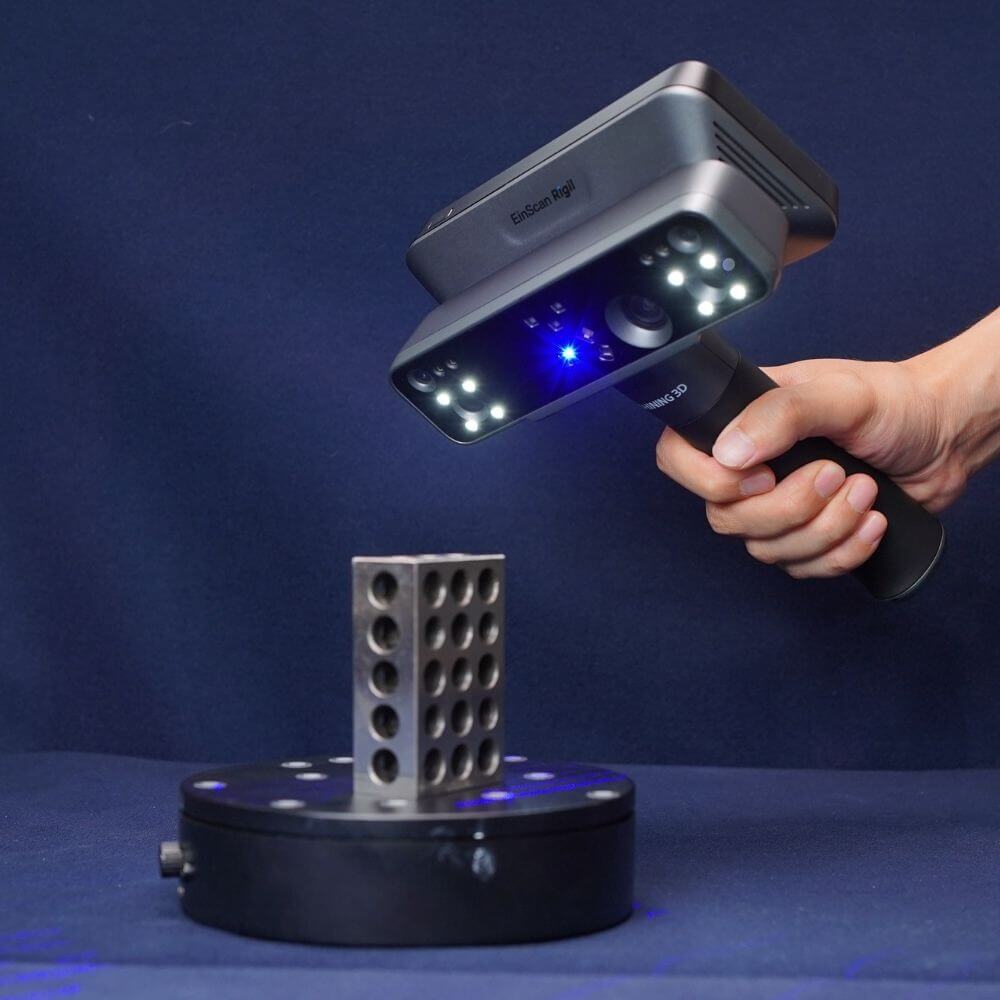

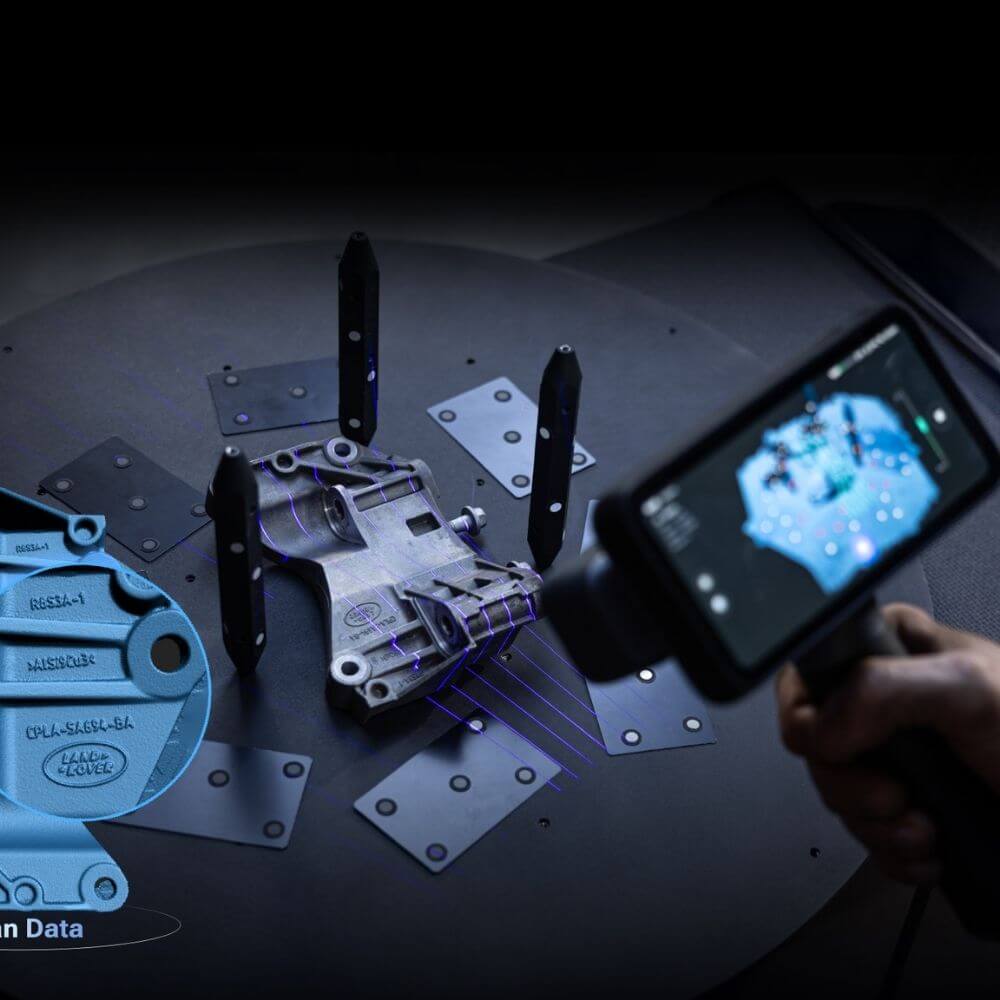

Fast scanning based on geometric features without the need for traditional markers.
.png)

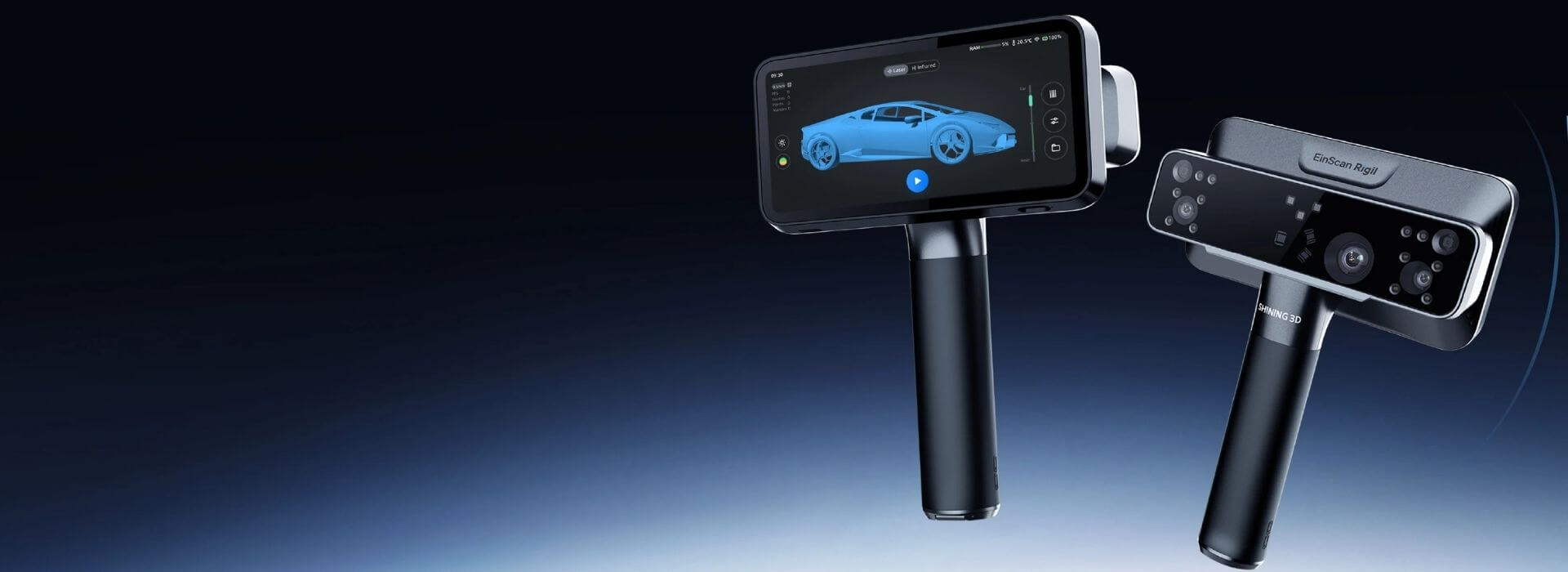

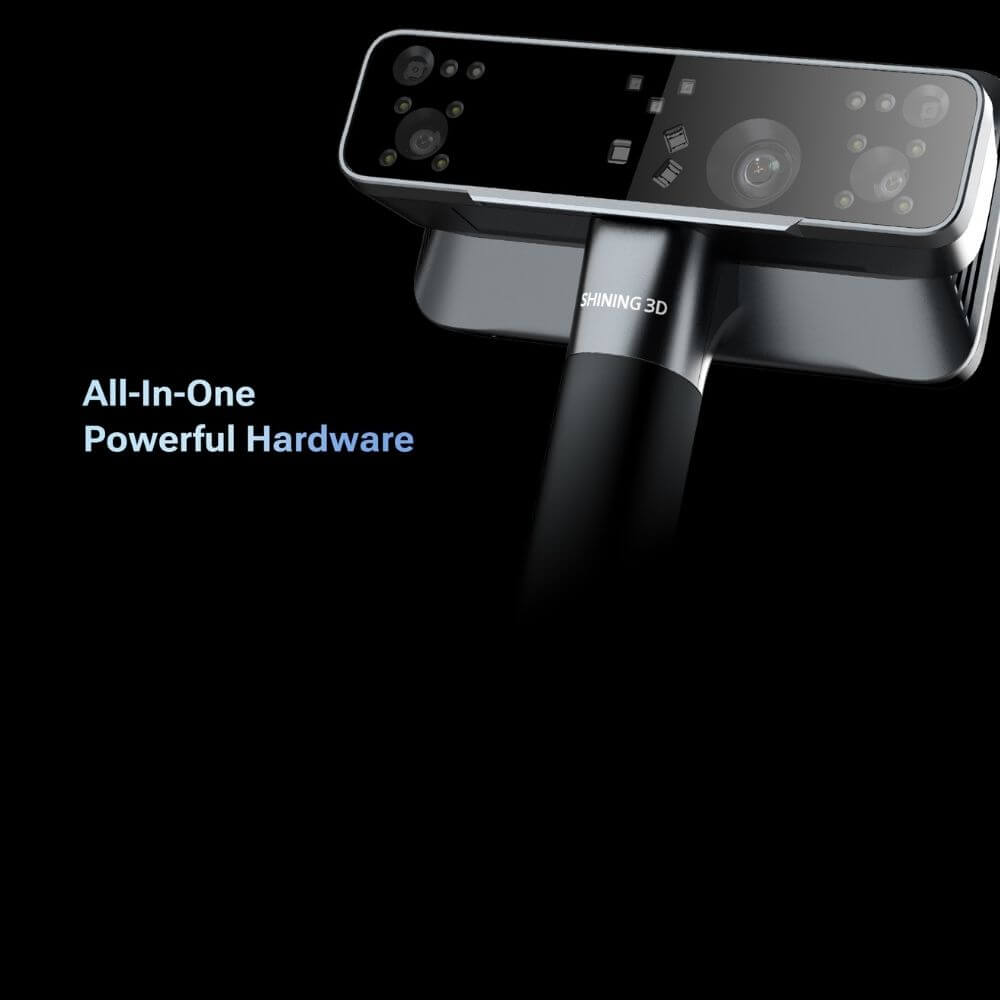

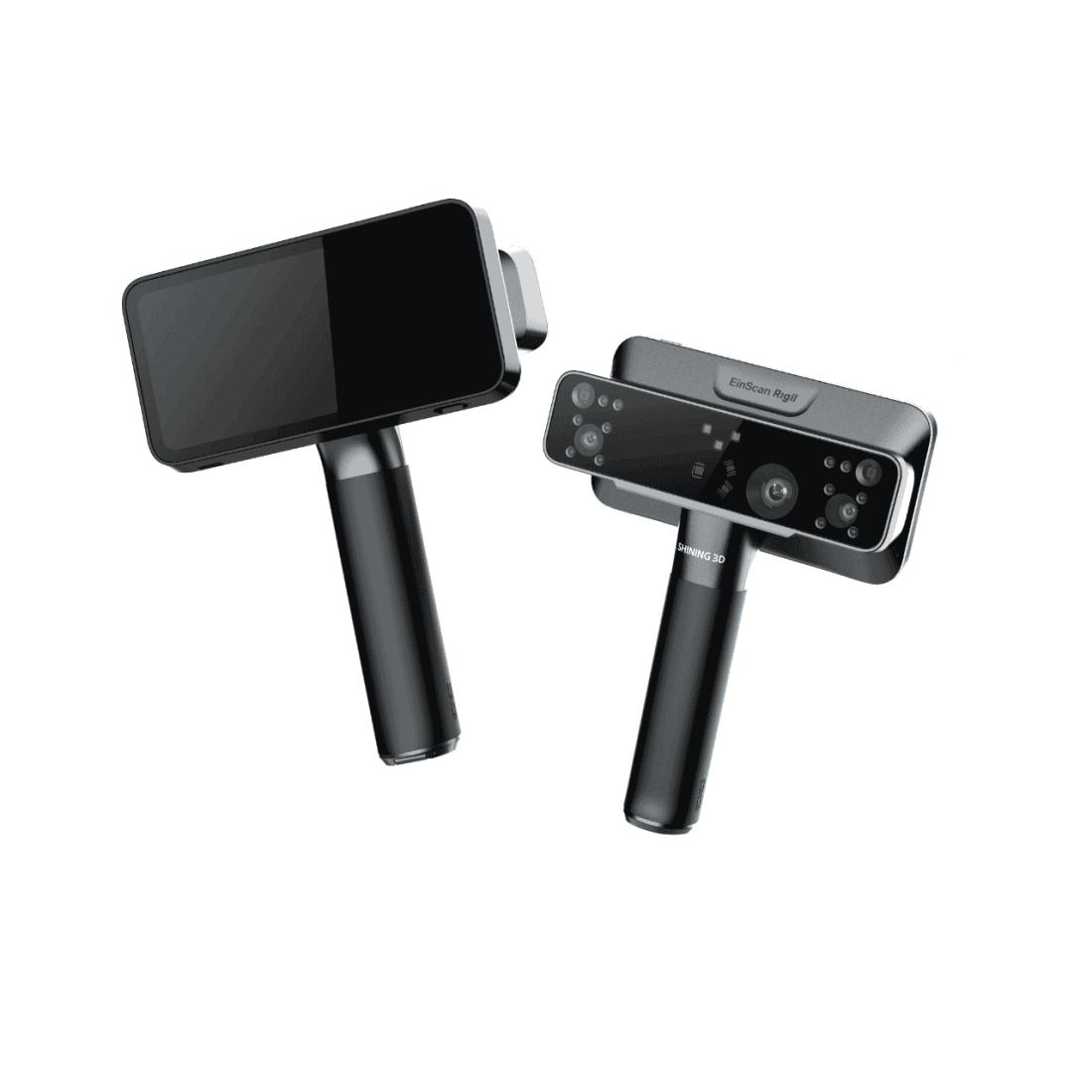

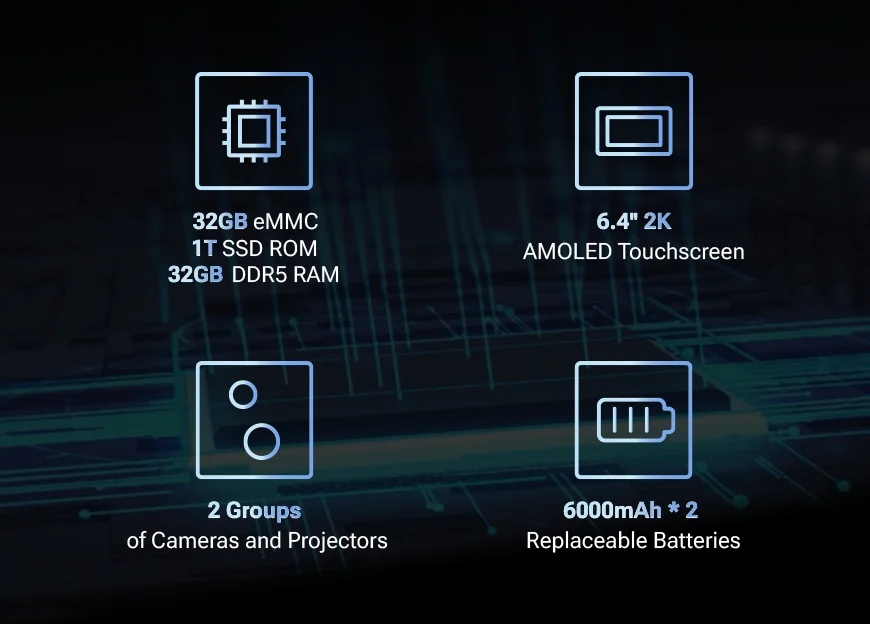

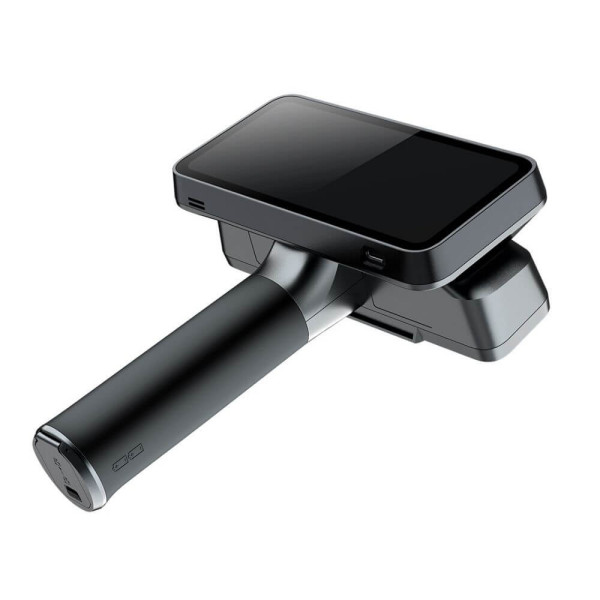

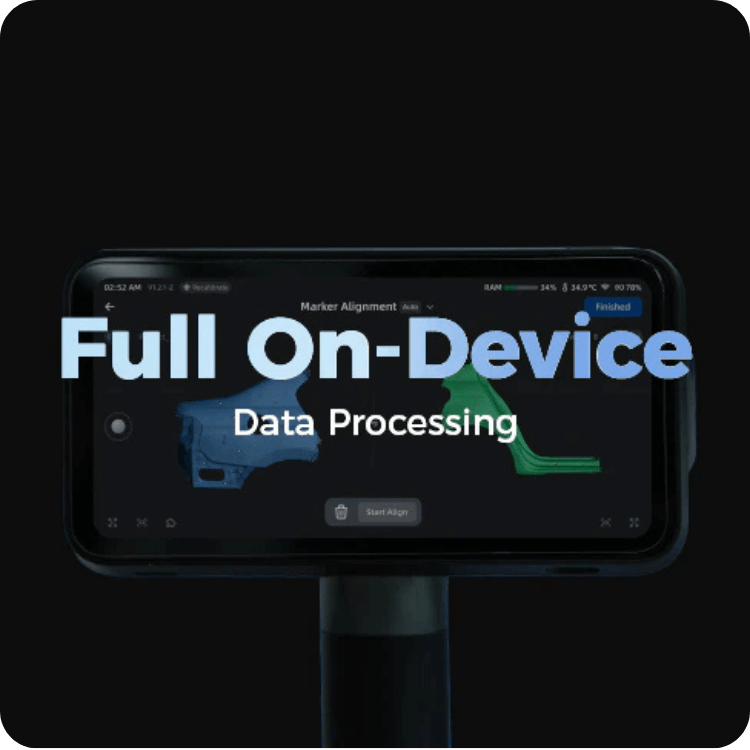

All-in-One Design Equipped with 32GB DDR5 RAM, 1TB SSD storage, and a 6.4" 2K AMOLED touchscreen for complete hardware support.
.jpg)

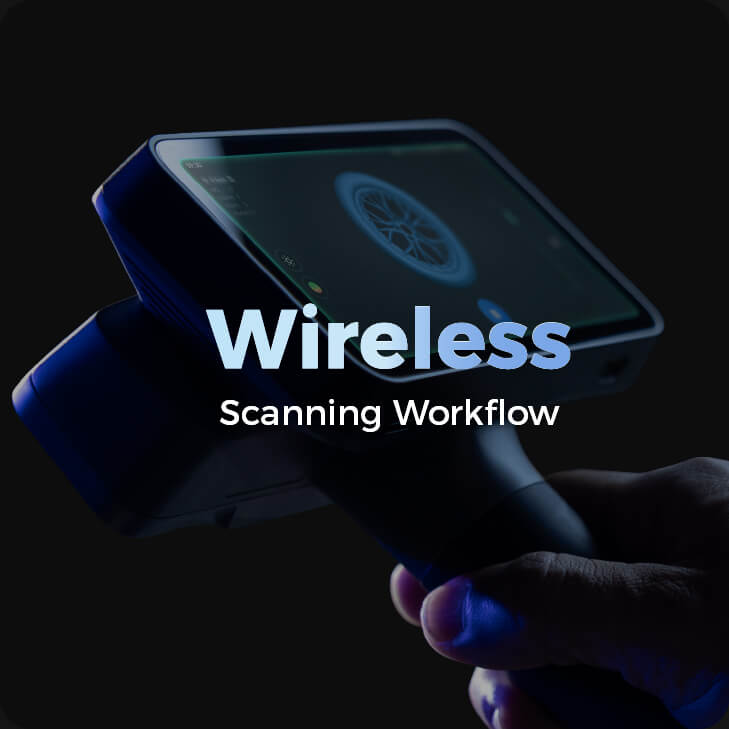

Full-Wireless Workflow Wi-Fi 6-enabled wireless scanning, data transfer, and screen mirroring for full mobility.

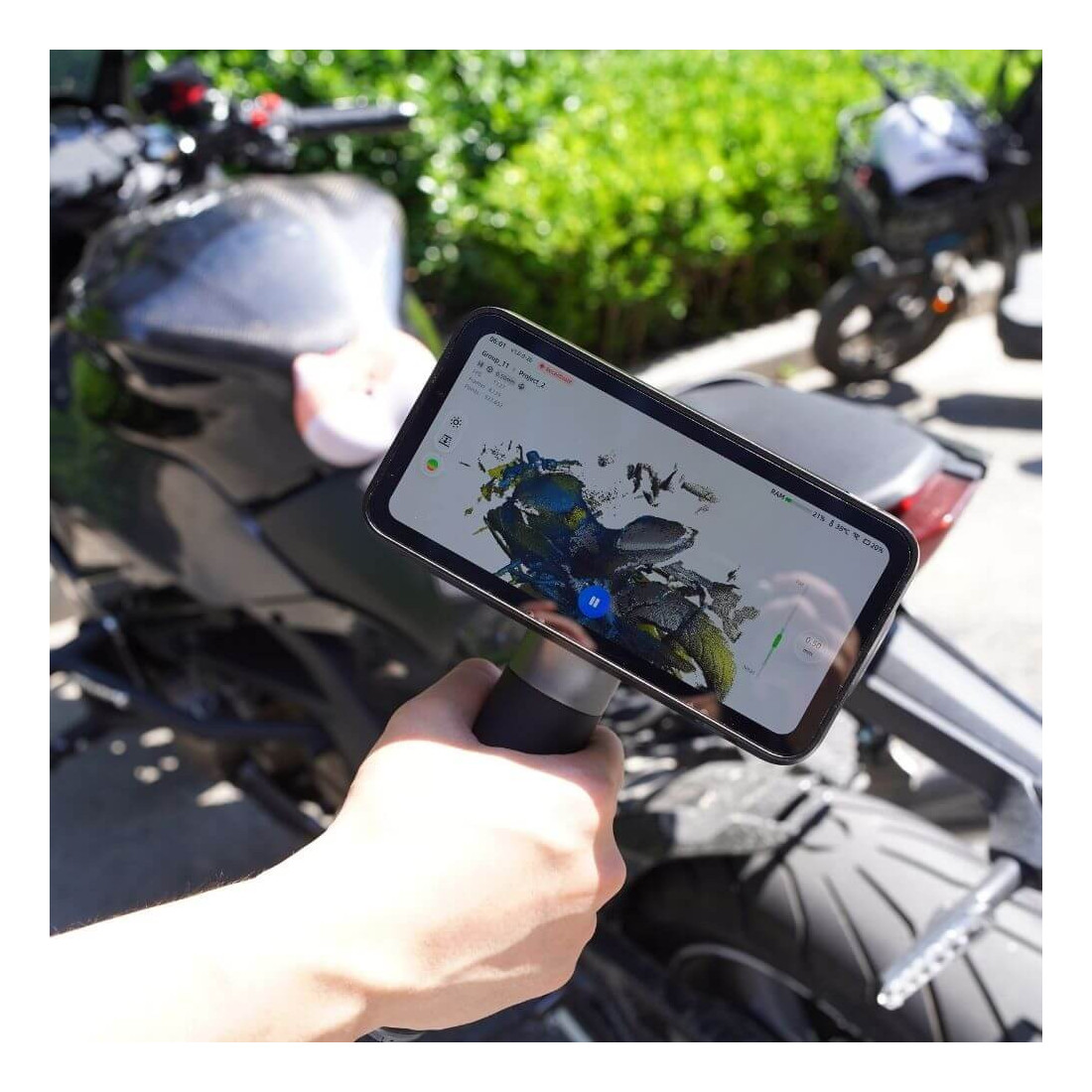

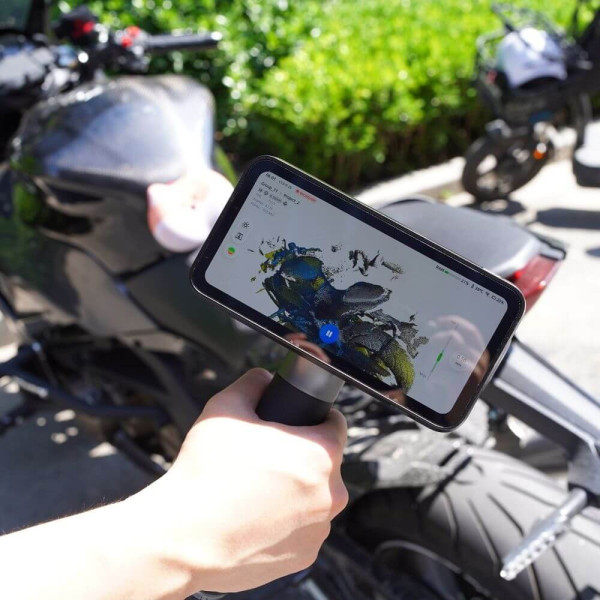

EinScan Rigil is an ideal solution for spare parts design and quality control in the automotive industry. With high precision and fast scanning, you can easily create 3D models. Scan intricate engine parts to body panels with precision.
Create digital copies of existing parts, design retrofit components, and support vehicle conversion projects with professional-grade 3D modeling. Use EinScan Rigil to generate 3D models of existing objects. Save time with markerless scanning technology and achieve high-quality models.

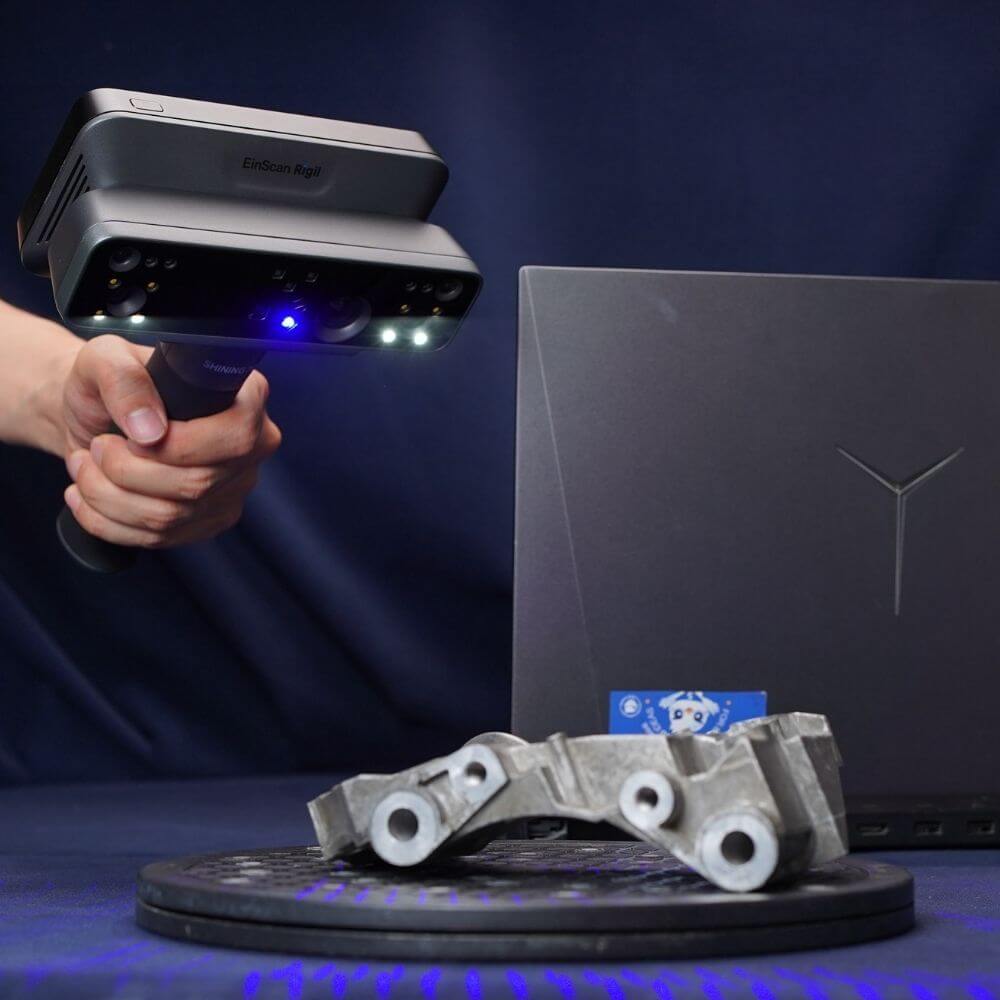

EinScan Rigil enhances manufacturing efficiency with precise measurements and fast scanning for prototype development and quality control. Export complex parts to CAD and enable rapid prototyping.

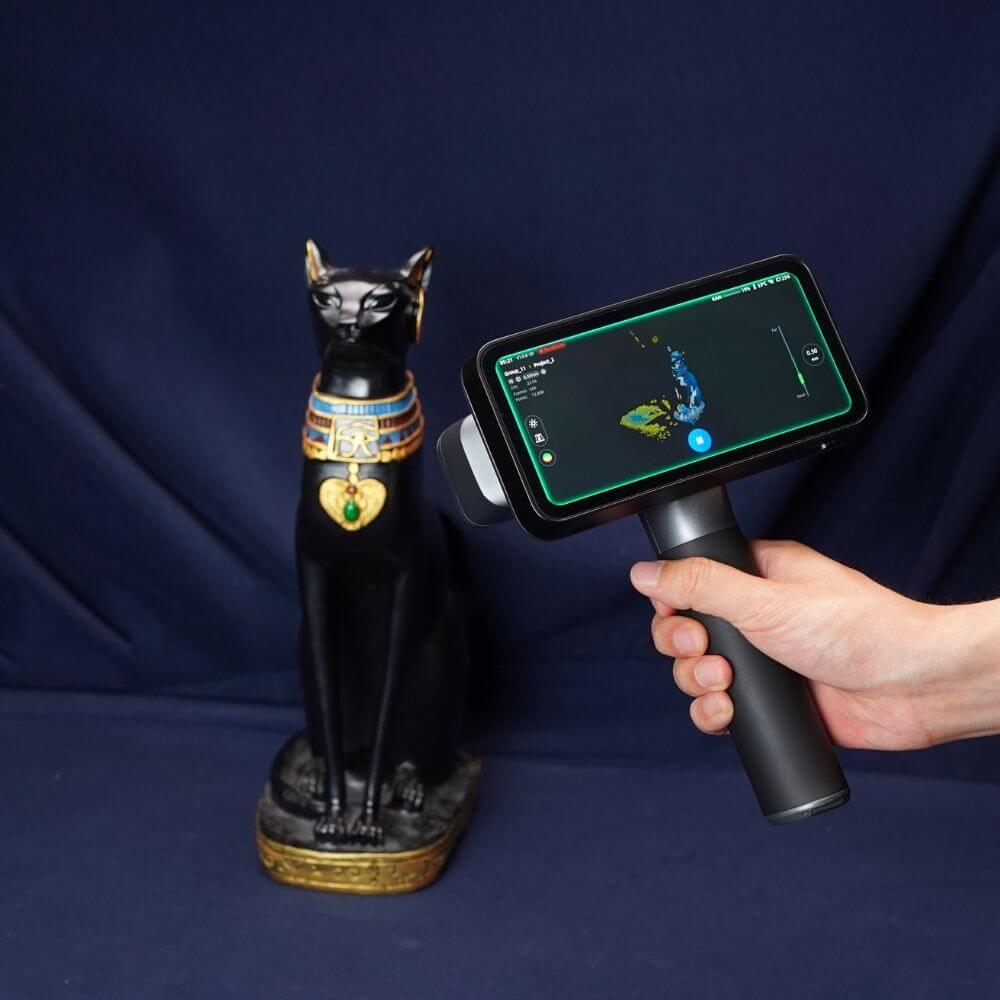

EinScan Rigil offers high-resolution digitization for museum artifacts, sculptures, and historical objects with its 5MP full-color texture scanning feature. Create realistic 3D models with full-color texture scanning technology.
Supports educational processes in universities and research centers with a portable, user-friendly interface and wireless screen mirroring. Generate precise 3D scanning data with EinScan Rigil.
Watch the video below to see how EinScan Rigil’s three operating modes, hybrid light technology, and professional scanning workflow perform in real-time.
Explore EinScan Rigil’s unique 3D scanning technology by requesting a quote today. Let us provide tailored solutions within 2 business days.
EinScan Rigil, developed by SHINING 3D, is a professional 3D scanner. It stands out with tri-mode laser scanning technology, wireless connectivity, and robust hardware features. The table below summarizes the device’s technical specifications and hardware in detail.
| EinScan Rigil Technical Specifications and Hardware | |
|---|---|
| Scan Modes | Laser HD Mode, Infrared Fast Mode, Hybrid Mode |
| Resolution | 0.05 mm (Laser HD Mode), 0.2 mm (Infrared Fast Mode) |
| Accuracy | 0.04 mm + 0.06 mm/m (Laser HD Mode), 0.1 mm + 0.3 mm/m (Infrared Fast Mode) |
| Scan Speed | 4,400,000 points/s (Laser HD Mode), 1,600,000 points/s (Infrared Fast Mode) |
| Working Distance | 170 - 550 mm (Laser HD Mode), 160 - 1500 mm (Infrared Fast Mode) |
| Light Source | 19+19 Cross Blue Laser Lines, 7 Parallel Blue Laser Lines, Infrared VCSEL |
| Camera | 5 MP HD Camera (Full-Color Texture Scanning) |
| Connectivity | Wireless (Wi-Fi 6), Wired (USB Type-C) |
| Hardware | 32 GB DDR5 RAM, 32 GB eMMC + 1 TB SSD, 6.4" 2K AMOLED Touchscreen, 2 x 6000 mAh Replaceable Batteries |
| Processor | 8-Core 2.4 GHz Processor |
| Software | EXScan Rigil (PC and Mobile App) |
| Supported File Formats | STL, OBJ, PLY, etc. |
| Operating Modes | Standalone Mode, Wireless PC Mode, Wired PC Mode |
| Marker-Free Scanning | Available (Laser + IR Hybrid Scanning Mode) |
| Outdoor Scanning | Seamless Scanning in Sunlight |
| Material Compatibility | Scans Dark and Reflective Metal Surfaces Without Spray |
Additional Notes
Hybrid Technology: The combination of laser and infrared light sources ensures high-quality scanning on various surfaces (e.g., reflective or dark materials).
Standalone Operation: Built-in processor and batteries allow fully wireless and independent use.

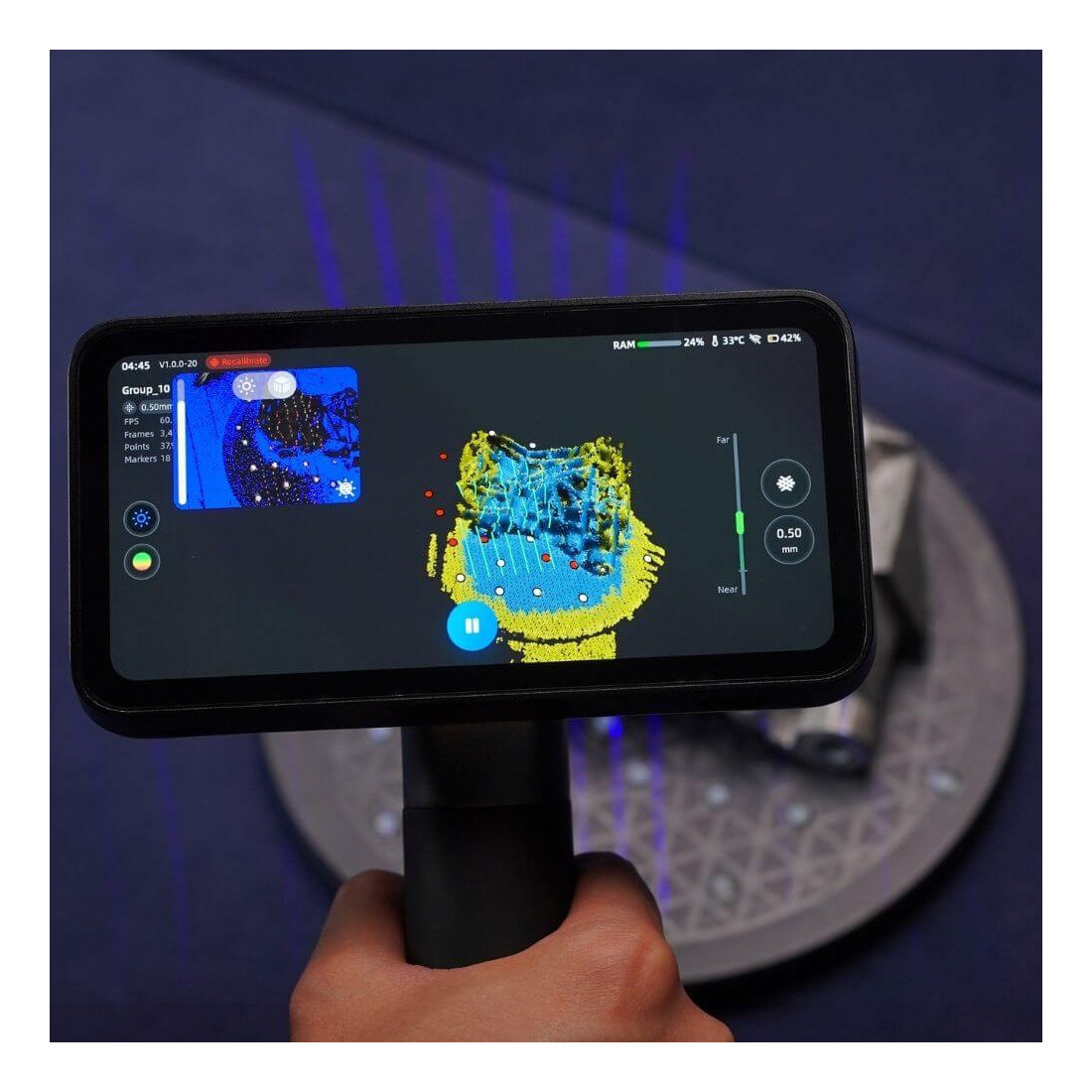

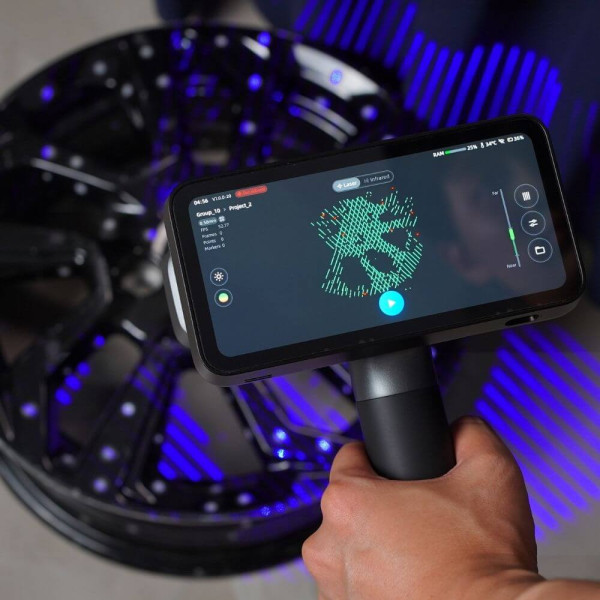

User-Friendly: The 6.4-inch AMOLED screen provides a touchscreen interface for easy control of scanning operations.
Professional Use: Ideal for automotive, reverse engineering, art, and manufacturing applications.
For more information about EinScan Rigil:
Download the EinScan Rigil Brochure
Shining 3D’s new EinScan Rigil 3D scanner offers industrial-grade precision scanning capabilities. It can scan a wide range of objects, from small mechanical parts to large machine components. It supports objects made from various materials such as metal, plastic, and wood, and can accurately capture complex geometries (e.g., curves or fine details). Additionally, it is suitable for applications such as reverse engineering, quality control, and prototype development.
The EinScan Rigil 3D scanner, adhering to Shining 3D’s renowned quality standards, typically provides accuracy down to sub-millimeter levels (e.g., up to 0.01 mm). Scanning speed depends on the object’s size and detail level, but a high-resolution model of an average part can be obtained in minutes. Fast scanning modes ensure time savings for urgent projects.
The EinScan Rigil 3D scanner features a user-friendly interface, and most personnel can operate it for basic tasks with brief training (a few hours of orientation). The software includes step-by-step guides and automated settings. However, a one-day training is recommended to fully utilize advanced features (e.g., complex data processing).
The Shining 3D scanner is compatible with common CAD/CAM software (e.g., SolidWorks, AutoCAD, CATIA) and supports standard file formats such as STL, OBJ, and PLY. It can be easily integrated via USB or Wi-Fi. Depending on your existing hardware specifications, it is recommended to verify compatibility with Shining 3D’s technical support team.
Designed for industrial use, this scanner has a robust build and can operate in challenging environments such as factories (with dust or vibrations). The EinScan Rigil 3D scanner comes with a standard 2-year warranty. With regular maintenance, it can be used reliably for many years.
Yes, the scanner has a compact and lightweight design, making it easy to transport within a factory or to field locations. It comes with accessories like a carrying case and offers battery-powered operation (depending on the model), allowing use without being tethered to a power outlet.
Glossy or transparent surfaces are typically challenging for 3D scanners, but the Shining 3D EinScan Rigil delivers successful results for such surfaces with special coating sprays or scanning adjustments (e.g., laser intensity settings). Surface preparation may be required before scanning, but this process is quick and straightforward.
Yes, the EinScan Rigil 3D scanner offers various resolution levels (e.g., low, medium, high) and scanning distances (from close range to several meters). These settings can be customized based on project requirements; for example, low resolution can be selected for a quick preliminary scan, while high resolution can be chosen for detailed analysis.
