Acrylonitrile Butadiene Styrene, is one of the most widely used thermoplastics in 3D printing. It is a very strong, hard and rigid material with chemical resistance to wear. It dissolves in acetone. It is not biodegradable (does not decompose in nature) and is adversely affected by exposure to UV rays. It requires a heated bed (build plate) between 80ºC and 100ºC. Durable prints with good mechanical properties. Our ABS filament has low warping so that you can print more easily with this material.
PRINT SETTINGS
|
Parameter |
Recommended Value |
|
Printing (Nozzle) Temperature |
240 - 260ºC |
|
Bed (Build Plate) Temperature |
90-110ºC |
|
Print Speed |
30 - 50 mm/s |
|
Cooling Fan |
30% - 50 |
|
Enclosed Chamber Requirement |
Recommended |
MECHANICAL PROPERTIES
|
XY Plane |
ZX Plane |
Unit of Measure |
|
|
Tensile Elongation at Break |
2.6 |
0.7 |
% |
|
Elongation at Maximum Stress |
1.4 |
0.7 |
% |
|
Flexural Elongation at Break |
8.8 |
2.5 |
% |
|
Hardness |
82.7 |
- |
Shore D |
|
Charpy Notched Impact Strength |
50.3 |
5.3 |
kJ/m² |
|
Flexural Modulus |
2245.9 |
140.8 |
MPa |
|
Tensile Modulus |
- |
- |
MPa |
|
Flexural Strength |
68.1 |
20.7 |
MPa |
|
Tensile Strength |
32.9 |
12.5 |
MPa |
Why Smart Materials ABS?
- Thanks to the special additives it contains, the lifting from the bed (warping) and layer cracking problems often experienced with standard ABS filaments are minimized. This makes the material much easier to print.
- It has a very strong, hard and rigid structure. Thanks to its tensile, flexural and impact strength, it is ideal for producing functional and load-bearing parts.
- It shows high resistance to friction and various chemicals.
- The series includes special engineering solutions such as flame-retardant ABS FR, tested according to UL94 and IEC 60695-11-10 standards for components that carry a fire risk.

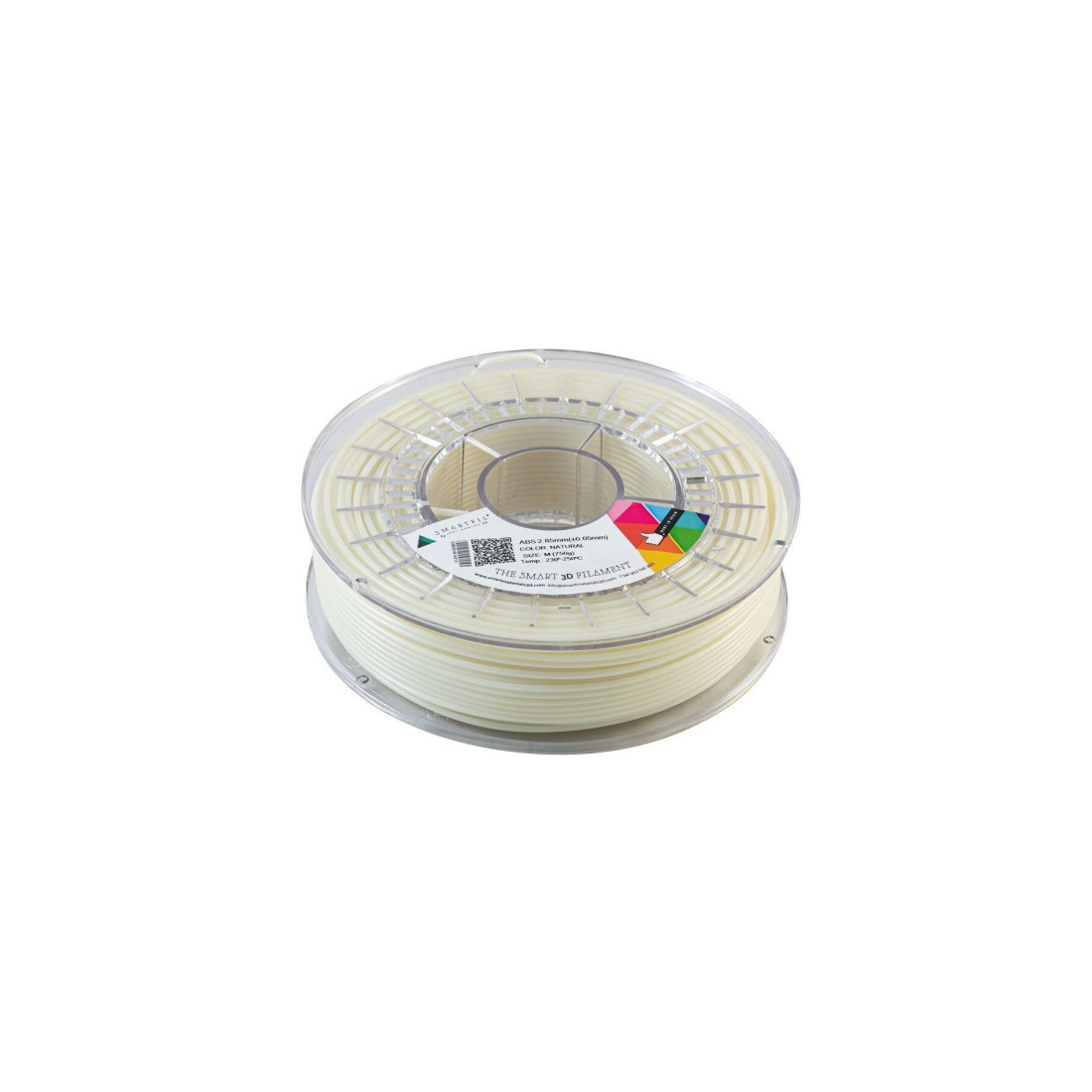

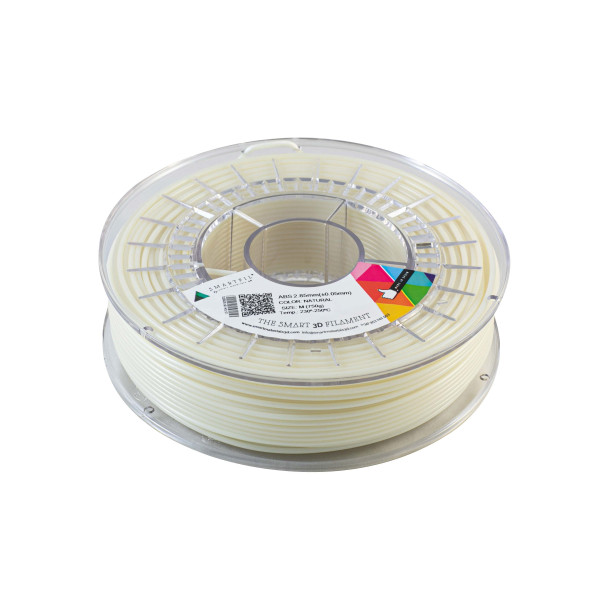

- Color
- Natural
- Filament Diameter
- 2.85mm
- Net Weight
- 750g
