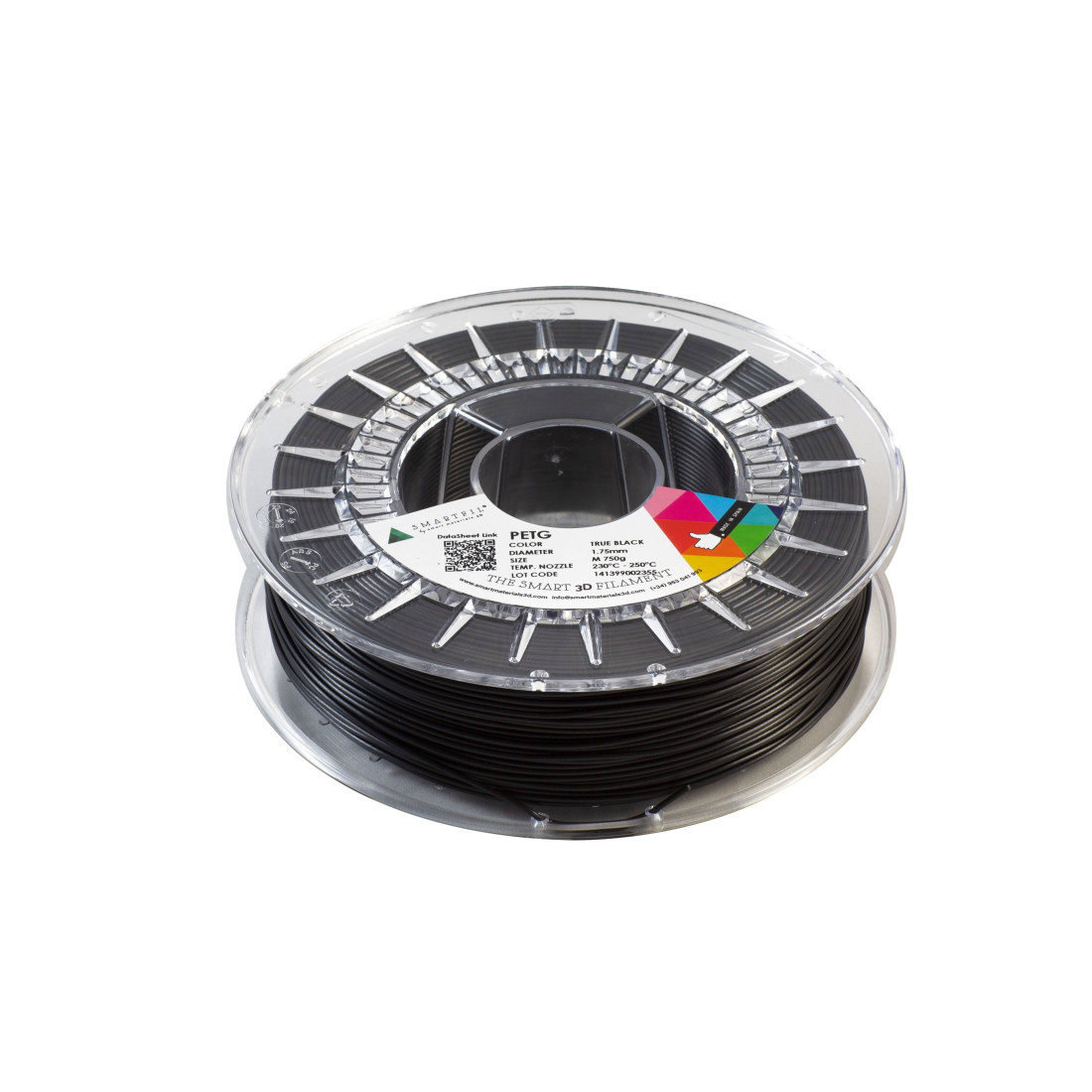

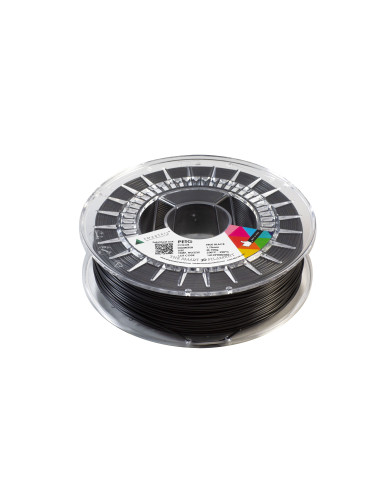

Smartfil PETG is a thermoplastic copolyester that, unlike PET, does not crystallize when heated; therefore it is a durable material with a certain flexibility. It also has high chemical resistance and transparency. This filament has USP Class VI or ISO 10993-1 certification, which guarantees that the filament is biocompatible with the human body. (This feature is valid only for the natural/colorless version.)
Application Areas
- Prototyping
- Enclosure (case/box) prototypes
- Automotive
- Translucent or glossy-surface parts
- Food Industry
- Medical applications
- Prostheses
Print Settings
|
Parameter |
Recommended Value |
|
Printing (Nozzle) Temperature |
220°C - 230°C |
|
Bed (Build Plate) Temperature |
70°C - 90°C |
|
Print Speed |
30 - 50 mm/s |
|
Cooling Fan |
70% - 90% |
|
Enclosed Chamber Requirement |
Not Required (N/A) |
Mechanical Properties
|
XY Plane (Horizontal) |
ZX Plane (Vertical) |
Unit of Measure |
|
|
Elongation at Break (Tensile) |
2.4 |
1.8 |
% |
|
Elongation at Maximum Stress |
2.4 |
1.8 |
% |
|
Elongation at Break (Flexural) |
15.5 |
4.3 |
% |
|
Hardness |
76.2 |
- |
Shore D |
|
Notched Impact Strength (Charpy) |
- |
2.8 |
kJ/m² |
|
Flexural Modulus |
1422.5 |
1460.2 |
MPa |
|
Tensile Modulus |
1186.9 |
1261.7 |
MPa |
|
Flexural Strength |
51.1 |
47.0 |
MPa |
|
Tensile Strength |
32.3 |
23.7 |
MPa |
- While standard PET materials tend to crystallize and turn cloudy when heated, this special copolyester formula does not crystallize. This gives it very high light transmission and lets you obtain glass-like translucent or mirror-like glossy parts.
- It is quite resistant to industrial oils, greases, and weak acids and bases. It is reliable for chemical enclosures that will work in industrial or automotive environments.
- Unlike high-performance plastics such as ABS or ASA, it does not need a closed chamber. It can be printed easily on an open-frame printer at relatively low standard temperatures such as 220°C - 230°C.
- Color
- Black
- Filament Diameter
- 1.75mm
- Net Weight
- 750g
