ASA is a 3D printing filament with exceptional resistance to weather conditions. Unlike many plastic materials, ASA keeps its color and impact strength (resistance) even after long-term outdoor use. It is mechanically very strong, which makes it excellent for applications that require high durability. It is resistant to ultraviolet (UV) rays, so it does not yellow. It is water resistant. It has high dimensional stability, so it does not cause warping and printed parts have good tolerance values.
Application Areas
- Prototyping of parts that require resistance to UV rays
- Decorative objects and figures for outdoor use
- Automotive industry
- Signs and markings
- Industrial applications that require mechanical strength
- Parts resistant to water and weather conditions
- Electrical installations
PRINT SETTINGS
|
Parameter |
Value |
|
Printing Temperature |
240 - 260 ºC |
|
Print Speed |
30 - 50 mm/s |
|
Bed Temperature |
90 - 110 ºC |
|
Enclosed Chamber |
Recommended |
|
Fan (Cooling Speed) |
30% - 50 |
MECHANICAL PROPERTIES
|
Property |
XY Plane |
ZX Plane |
Unit |
|
Elongation at Break (Tensile) |
6 |
0.8 |
% |
|
Elongation at Maximum Stress |
2.9 |
0.8 |
% |
|
Elongation at Break (Flexural) |
15.3 |
2.2 |
% |
|
Hardness |
81.5 |
- |
Shore D |
|
Charpy Impact Strength (Notched) |
50.3 |
5 |
kJ/m² |
|
Flexural Modulus |
2044.4 |
1953.8 |
MPa |
|
Tensile Modulus |
1378 |
2199.1 |
MPa |
|
Flexural Strength |
75.7 |
39.4 |
MPa |
|
Tensile Strength |
35 |
15.5 |
MPa |
Why Smart Materials ASA?
- It shows full long-term resistance to water and harsh weather conditions.
- It keeps its color and physical integrity even after a long time in the sun and does not yellow.
- Thanks to its high impact and flexural strength, it provides strong parts that resist breakage.
- By minimizing warping problems, it lets you get high-tolerance, precise and dimensionally accurate prints.
- It is ideal for industrial applications such as automotive, electrical installations, outdoor signs and engineering prototypes.

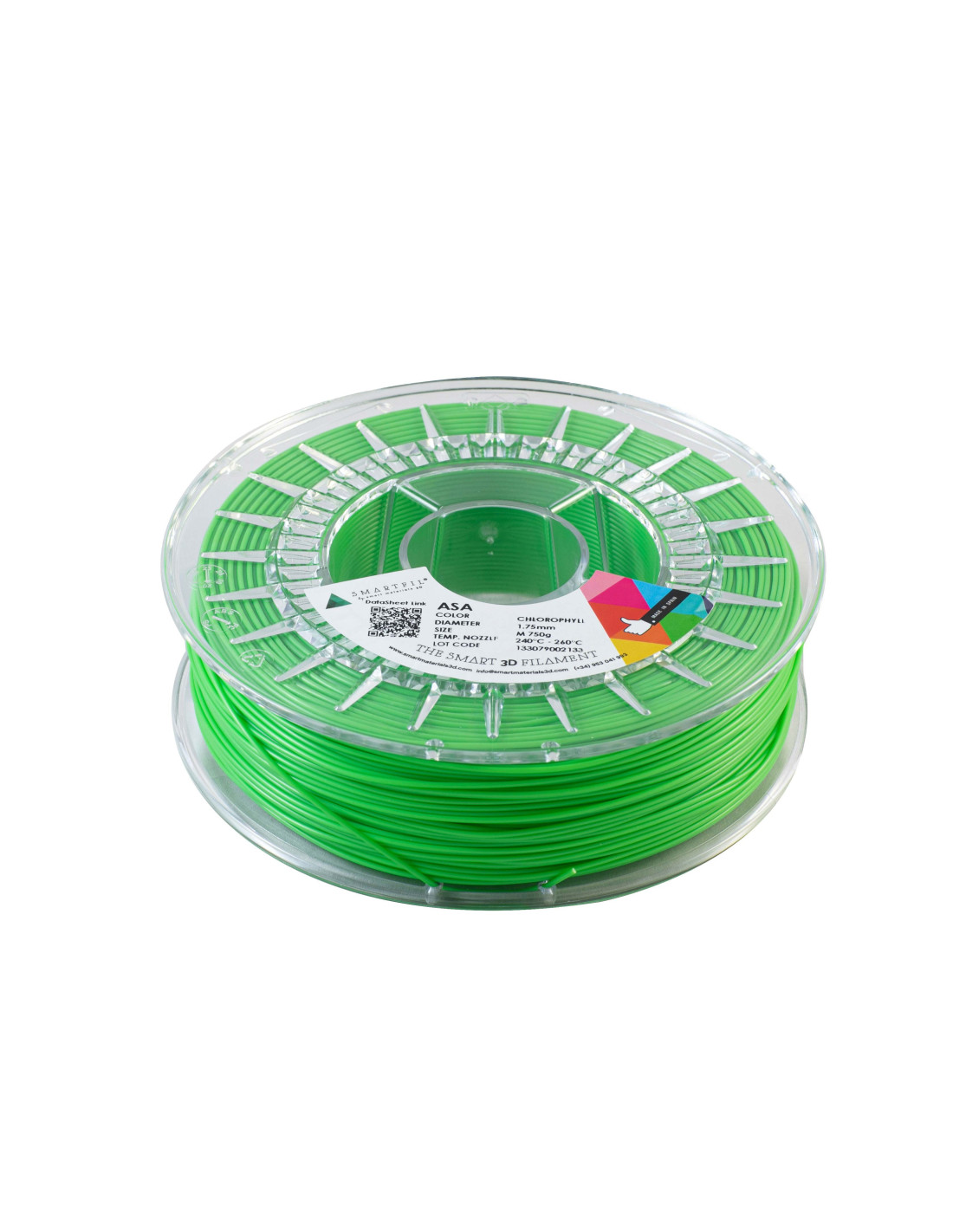

- Color
- Green
- Filament Diameter
- 1.75mm
- Net Weight
- 750g
